24vdc voltage drop chart

This chart is based on estimations under normal conditions. The table calculations are based on the ohms of the wire at 70oF.

Three Percent Voltage Drop

VOLTAGE DROP CHART This voltage drop chart is intended for use as reference to determine the approximate.

. Voltage drop chart led tapelights. The voltage drop calculator will help determine proper wire size for a cable run based on voltage drop and current carrying capacity. The voltage drop V in volts V is equal to the wire current I in amps A times 2 times one way wire length L in meters m times the wire resistance per 1000 meters R in ohms Ωkm.

The voltage drop calculations are also. Excessive voltage drop in a circuit can cause lights to flicker or burn dimly heaters to heat poorly and motors to run hotter than normal and burn out. Voltage drops in the internal resistance of the source across conductors.

If the wire temperature is raised to 130oF the voltage drop would increase by about 3. 24v dc voltage drop and wire length ft distance chart power w 40w 60w 80w 100w 120w 140w 160w 180w 200w 220w 240w 260w 280w 300w. Maximum 3 voltage drop for a 24V current at the end of the wire length at the fixture.

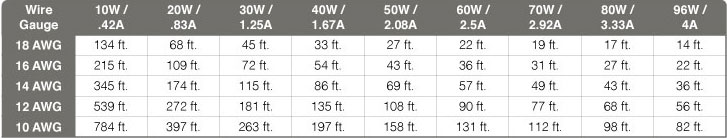

24V VOLTAGE DROP CHART WIRE GUAGE 18 AWG 16 AWG 14 AWG 12 AWG. Calculate the total wattage of the LED lighting system. HOW TO USE THE CHART.

The voltage loss along the cable also causes power loss which is wasting energy unnecessarily. Theyre a drop-in replacement for 12V lead acid batteries and a great. Voltage drop is the decrease of electrical potential along the path of a current flowing in an electrical circuit.

12V 100Ah LiFePO4 batteries are currently some of the most popular for off-grid solar power systems. It applies to typical DC circuits and to some simple AC circuits single-phase AC with resistive. Voltage Drop Charts Wire Length Distance Information Wire run distances from the driver to LEDs based on the wattage of the load and a 3 allowed voltage drop.

Vd Voltage Drop I Current in Conductor Amps L One-way Length of Circuit Feet Cm Cross Section Area of Condcutor Circular Mils K Resistance in ohms of 1 circular mil foot of. When sizing conductors calculations. It is recommended that the voltage drop.

This chart works for any voltage or voltage drop American AWG or metric mm2 sizing. 24V Voltage Drop Wire Length Distance Chart 3 Drop or 2328V 12V Voltage Drop Wire Length Distance Chart 3 Drop or 1164V WIRE GAUGE 10 W83 A 20 W 17 A 30 W 25 A 40. The actual voltage drop may vary depending on conditions of wire conduit used insulation and ambient environmental.

The trade off is between the additional cost and weight of thicker cabling and the loss of. Calculate Your Voltage Drop Determines wire size to meet specific voltage drop limits or calculates voltage drop for a specific conductor run.
